CU103601

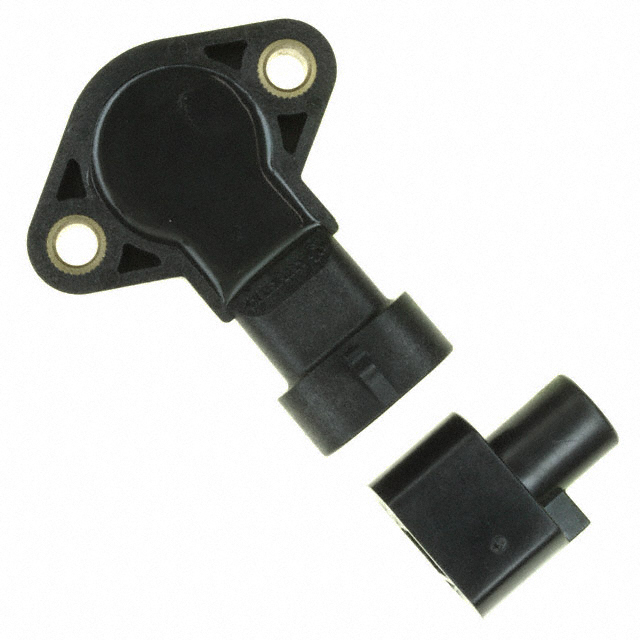

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CU103601 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CU103601 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CU103601 |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SENSOR ANGLE 180DEG CONNECTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $19.145 | $16.535 | $15.23 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $13.489 | $13.054 | $12.619 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CU103601 | Manufacturer | Cherry Switches (ZF Electronics) |
|---|---|---|---|
| Description | SENSOR ANGLE 180DEG CONNECTOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2968 pcs | Data sheet | AS500106 Series DatasheetAN8 Series Datasheet |
| Category | Sensors, Transducers | Voltage - Supply | 5V |
| Termination Style | Connector | Technology | Hall Effect |
| Supplier Device Package | - | Series | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180°, Continuous | Resistance Tolerance | - |
| Packaging | Box | Package / Case | Module |
| Output Signal | Clockwise Increase | Output | Analog Voltage |
| Other Names | CH926 CU103601-ND |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Linearity | ±3.5% |
| Linear Range | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| For Measuring | Angle | Detailed Description | Hall Effect Sensor Angle External Magnet, Included Connector |
| Actuator Type | External Magnet, Included |
