CEDM7004 TR

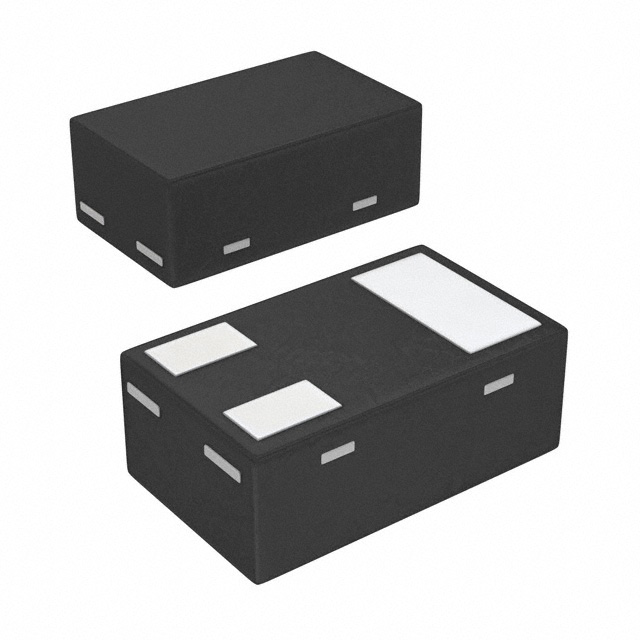

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CEDM7004 TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CEDM7004 TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CEDM7004 TR |
|---|---|
| Manufacturer | Central Semiconductor |
| Description | MOSFET N-CH 8.0V 3.56A SOT-883 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 8000 pcs | ||||
|---|---|---|---|---|---|
| $0.087 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CEDM7004 TR | Manufacturer | Central Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 8.0V 3.56A SOT-883 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 240393 pcs | Data sheet | CEDM7004 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | 8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SOT-883 | Series | - |
| Rds On (Max) @ Id, Vgs | 460 mOhm @ 200mA, 4.5V | Power Dissipation (Max) | 100mW (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | SC-101, SOT-883 |
| Other Names | CEDM7004 TR LEAD FREE CEDM7004 TR PBFREE CEDM7004 TR-ND CEDM7004TR |
Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 43pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 0.79nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 1.78A (Ta) 100mW (Ta) Surface Mount SOT-883 | Current - Continuous Drain (Id) @ 25°C | 1.78A (Ta) |
