CEDM7001VL TR

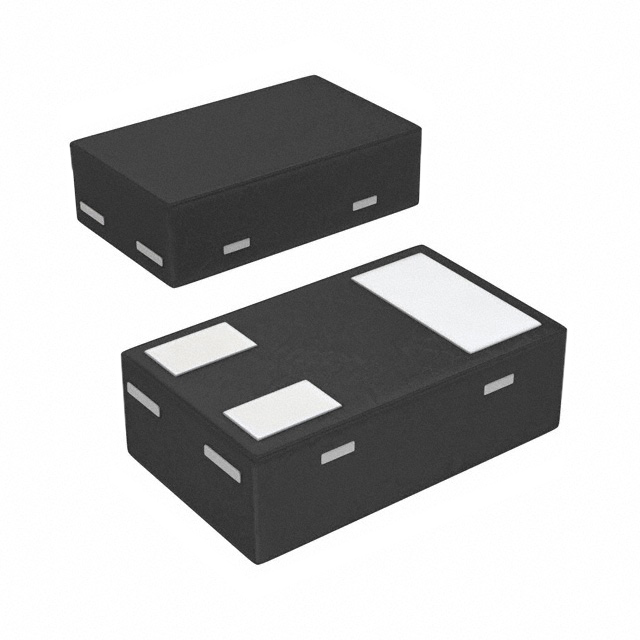

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CEDM7001VL TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CEDM7001VL TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CEDM7001VL TR |
|---|---|
| Manufacturer | Central Semiconductor |
| Description | MOSFET N-CH 20V 0.1A SOT883 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 8000 pcs | ||||
|---|---|---|---|---|---|
| $0.04 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CEDM7001VL TR | Manufacturer | Central Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 20V 0.1A SOT883 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 523221 pcs | Data sheet | CEDM7001VL |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Vgs (Max) | 10V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SOT-883VL | Series | - |
| Rds On (Max) @ Id, Vgs | 3 Ohm @ 10mA, 4V | Power Dissipation (Max) | 100mW (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | SC-101, SOT-883 |
| Other Names | CEDM7001VL TR PBFREE CEDM7001VL TR-ND CEDM7001VLTR |
Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 9pF @ 3V | Gate Charge (Qg) (Max) @ Vgs | 0.57nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | N-Channel 20V 100mA (Ta) 100mW (Ta) Surface Mount SOT-883VL | Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
