Home > Products > Switches > Rocker Switches > W11D20001-AZZ00-000

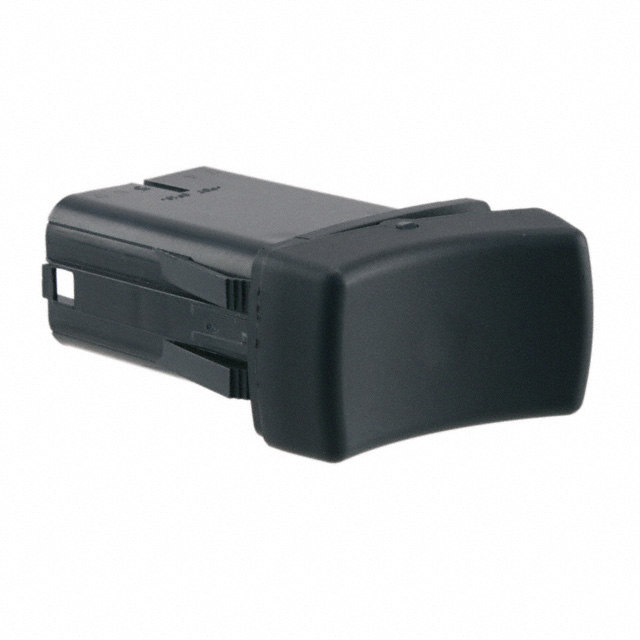

W11D20001-AZZ00-000

W11D20001-AZZ00-000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W11D20001-AZZ00-000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	W11D20001-AZZ00-000
Manufacturer	Carling Technologies
Description	SWITCH ROCKER SPST 10A 12V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 8724 pcs
Reference Price (In US Dollars)	20 pcs
Reference Price (In US Dollars)	$4.229

Product parameter
Data sheet

Product parameter

Part Number	W11D20001-AZZ00-000	Manufacturer	Carling Technologies
Description	SWITCH ROCKER SPST 10A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8724 pcs	Data sheet	W Series
Category	Switches	Voltage Rating - DC	12V
Termination Style	Quick Connect - 0.110" (2.8mm)	Switch Function	On-Off
Series	W	Panel Cutout Dimensions	Rectangular - 36.83mm x 21.08mm
Packaging	Bulk	Other Names	432-1318 W11D20001AZZ00000
Operating Temperature	-40°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	250,000 Cycles
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP68 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Sealed - Fully
Electrical Life	100,000 Cycles	Detailed Description	Rocker Switch SPST 10A (DC) Panel Mount, Snap-In
Current Rating	10A (DC)	Color - Actuator/Cap	Black
Circuit	SPST	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
