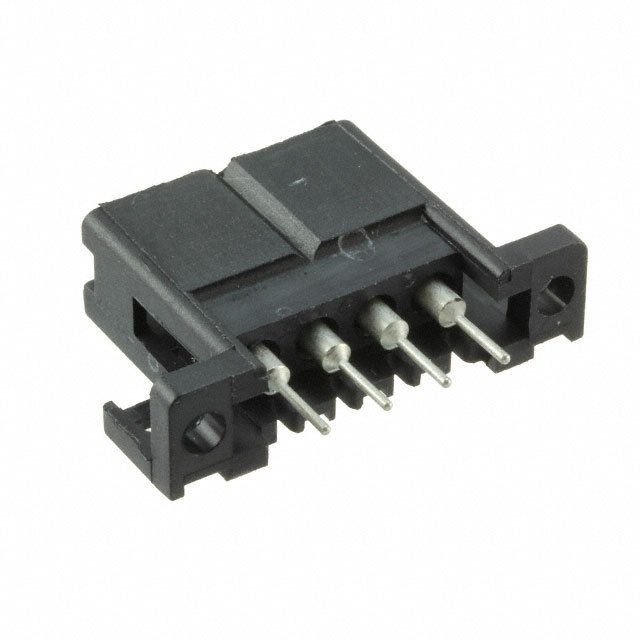

TST04RD01T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TST04RD01T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TST04RD01T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TST04RD01T |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT STR PCB 4POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.742 | $2.626 | $2.169 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.941 | $1.827 | $1.598 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TST04RD01T | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RCPT STR PCB 4POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23413 pcs | Data sheet | Trident Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Trident Slimline |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1003-2505 192991-0318 192991-0318-ND 1929910318 TST04RD01T-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.911" (23.15mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 4 position 0.200" (5.08mm) | Current Rating | 10A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | - | Contact Length - Post | 0.185" (4.70mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
