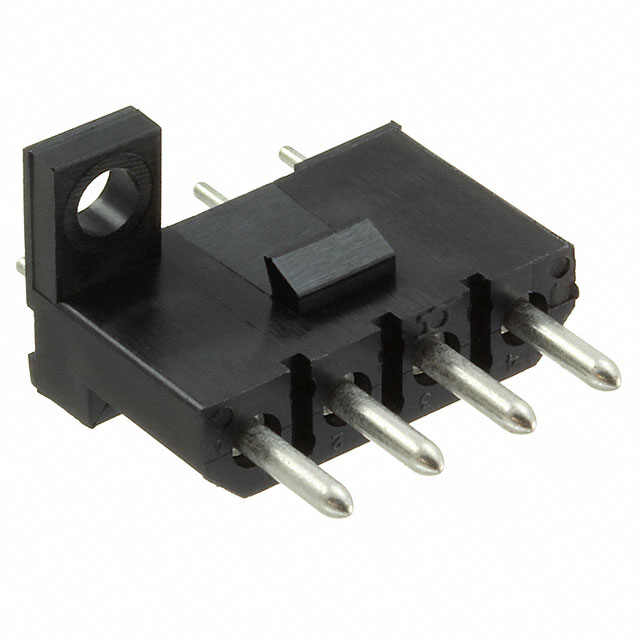

TST04RB01T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TST04RB01T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TST04RB01T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TST04RB01T |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RECEPT PCB 4POS TIN PIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.868 | $1.792 | $1.493 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.307 | $1.269 | $1.083 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TST04RB01T | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RECEPT PCB 4POS TIN PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29789 pcs | Data sheet | Trident Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | Trident Rectangular |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1003-2489 192991-0287 192991-0287-ND 1929910287 TST04RB01T-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.531" (13.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 4 position 0.200" (5.08mm) |
| Current Rating | 13A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | - |
| Contact Length - Post | 0.224" (5.70mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | Automotive, Industrial |
