TST03RB02T

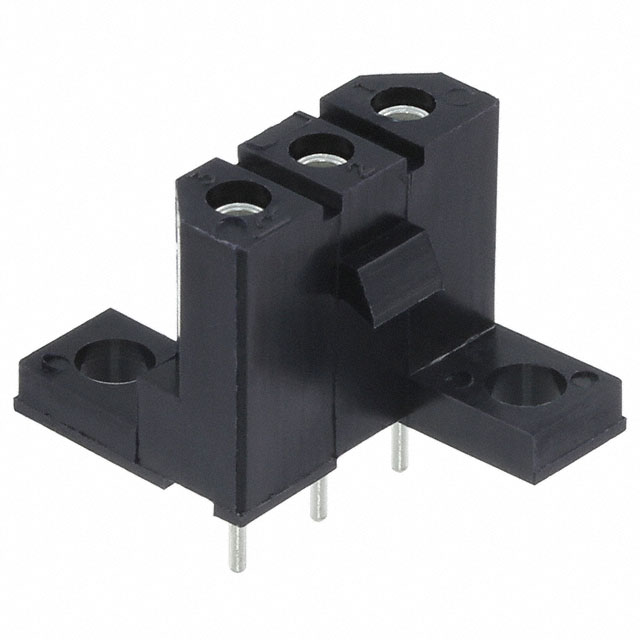

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TST03RB02T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TST03RB02T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TST03RB02T |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT PCB 3POS TIN RCPT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.763 | $1.692 | $1.41 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.234 | $1.199 | $1.022 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TST03RB02T | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RCPT PCB 3POS TIN RCPT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37712 pcs | Data sheet | Trident Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Trident Rectangular | Row Spacing - Mating | - |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1003-2495 192991-0222 192991-0222-ND 1929910222 TST03RB02T-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.531" (13.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | 3 Position Receptacle Connector 0.200" (5.08mm) Through Hole Tin | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | - | Contact Length - Post | 0.224" (5.70mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | Automotive, General Purpose |
