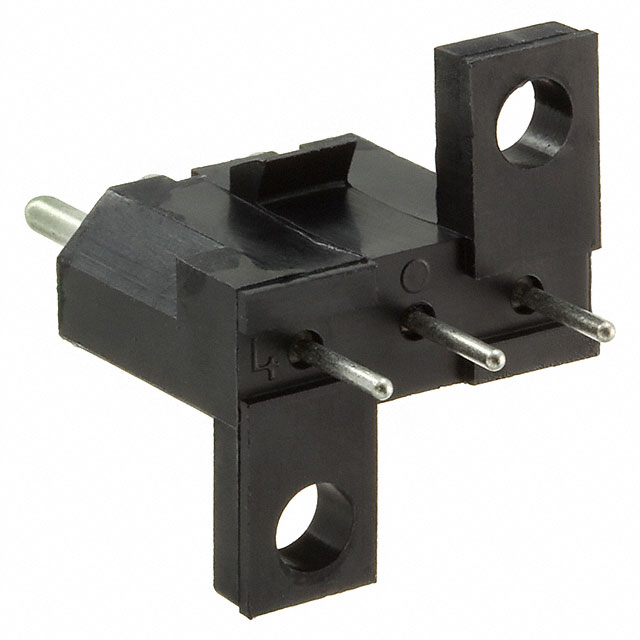

TST03RB01T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TST03RB01T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TST03RB01T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TST03RB01T |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RECEPT PCB 3POS TIN PIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 160 pcs | ||||
|---|---|---|---|---|---|
| $1.332 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TST03RB01T | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RECEPT PCB 3POS TIN PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27196 pcs | Data sheet | Trident Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | Trident Rectangular |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1003-2488 192991-0279 192991-0279-ND 1929910279 TST03RB01T-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.531" (13.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 3 position 0.200" (5.08mm) | Current Rating | 13A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | - | Contact Length - Post | 0.224" (5.70mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | Automotive, Industrial |
