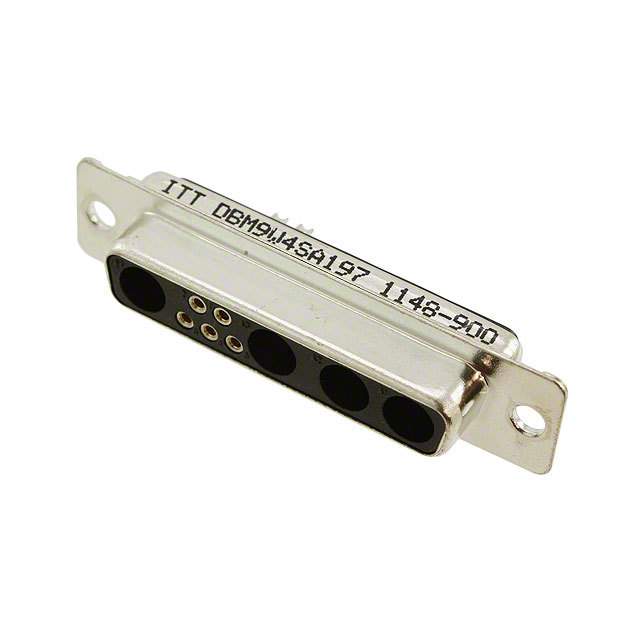

DBM-9W4S-A197
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DBM-9W4S-A197 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DBM-9W4S-A197 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DBM-9W4S-A197 |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 9POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $3.268 | $3.127 | $2.629 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.345 | $2.203 | $1.947 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DBM-9W4S-A197 | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18883 pcs | Data sheet | Combo D Catalog |
| Category | Connectors, Interconnects | Wire Gauge | 8-26 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 | Shell Material, Finish | Steel, Tin-Nickel Plated |
| Series | Combo D®, D*M | Packaging | Bulk |
| Other Names | 053513-1525 1003-1847 535131525 DBM-9W4S-A197-ND DBM9W4SA197 IDBM9W4SA197 IDBM9W4SA197-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 9 (5 + 4 Coax or Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Shielded | Detailed Description | 9 (5 + 4 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | - |
