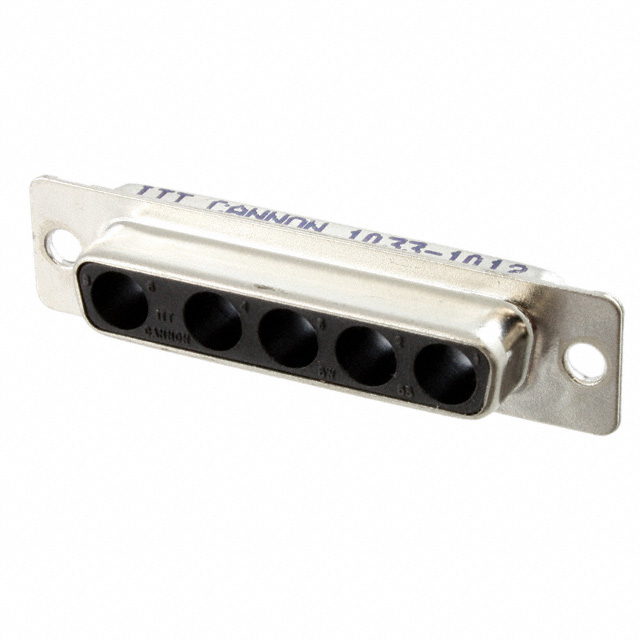

DBM-5W5S-A197
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DBM-5W5S-A197 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DBM-5W5S-A197 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DBM-5W5S-A197 |
|---|---|
| Manufacturer | Cannon |
| Description | DSUB RCPT 5W5 SOLDER CUP T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.21 | $2.118 | $1.749 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.565 | $1.473 | $1.289 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DBM-5W5S-A197 | Manufacturer | Cannon |
|---|---|---|---|
| Description | DSUB RCPT 5W5 SOLDER CUP T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24223 pcs | Data sheet | Combo D Catalog053513-1602 |
| Category | Connectors, Interconnects | Shell Size, Connector Layout | 3 (DB, B) - 5W5 |
| Shell Material, Finish | Steel, Tin Plated | Shell Finish Thickness | - |
| Series | Combo D®, D*M | Packaging | Bulk |
| Other Names | 053513-1602 1003-1069 535131602 DBM5W5SA197 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions | 5 (Coax or Power) |
| Note | Contacts Not Included | Mounting Type | Panel Mount |
| Mating Cycles | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Flange Feature | Housing/Shell (Unthreaded) | Features | Shielded |
| Dielectric Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Detailed Description | Receptacle for Female Contacts Housing D-Sub, Combo Connector 5 (Coax or Power) Position |
| Contact Type | Coax or Power | Connector Type | Receptacle for Female Contacts |
| Connector Style | D-Sub, Combo | Color | Black |
