DAMM-7W2P

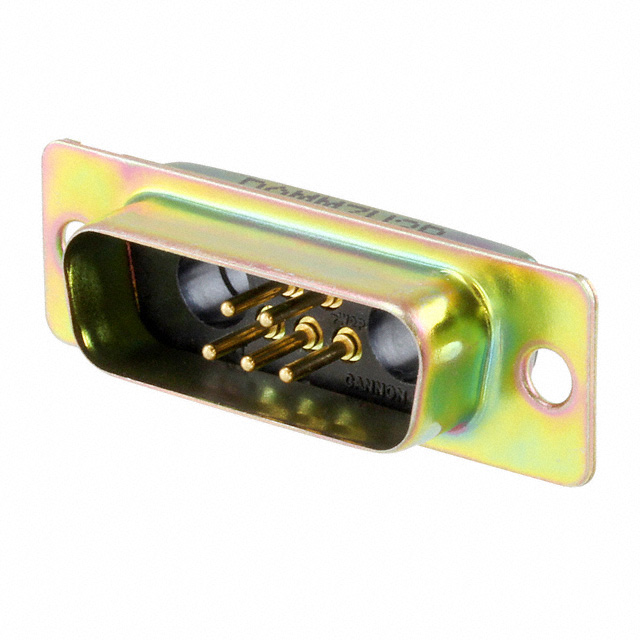

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DAMM-7W2P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DAMM-7W2P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DAMM-7W2P |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB PLUG 7POS PNL MNT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $4.275 | $3.887 | $3.304 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $3.012 | $2.818 | $2.585 | |||
- Product parameter
Product parameter
| Part Number | DAMM-7W2P | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB PLUG 7POS PNL MNT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 11538 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Gauge | 8-26 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 | Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Series | 24308-Style, Combo D®, D*MM | Packaging | Bulk |
| Other Names | 051520-0002 1003-1765 515200002 DAMM-7W2P-ND DAMM7W2P IDAMM7W2P IDAMM7W2P-ND |
Operating Temperature | -55°C ~ 150°C |
| Number of Rows | 2 | Number of Positions | 7 (5 + 2 Coax or Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Shielded | Detailed Description | 7 (5 + 2 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 7.5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | 50.0µin (1.27µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | - |
