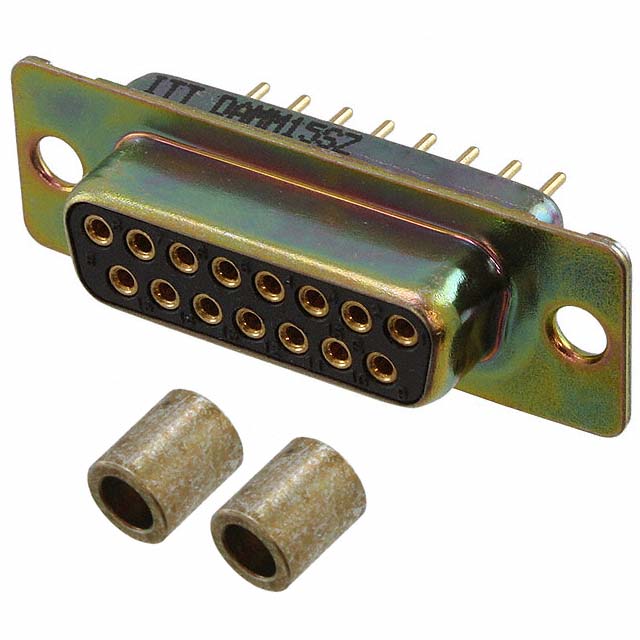

DAMM-15S-Z
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DAMM-15S-Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DAMM-15S-Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DAMM-15S-Z |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 15P PNL MNT SLDR |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $8.335 | $7.525 | $6.533 | $6.173 | $5.993 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DAMM-15S-Z | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15P PNL MNT SLDR | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6271 pcs | Data sheet | DAMM15SZ |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | 24308-Style, D*MM | Packaging | Bulk |
| Other Names | 051521-0023 1003-1772 515210023 DAMM-15S-Z-ND DAMM15SZ IDAMM15SZ IDAMM15SZ-ND |
Operating Temperature | -55°C ~ 150°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | 50.0µin (1.27µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
