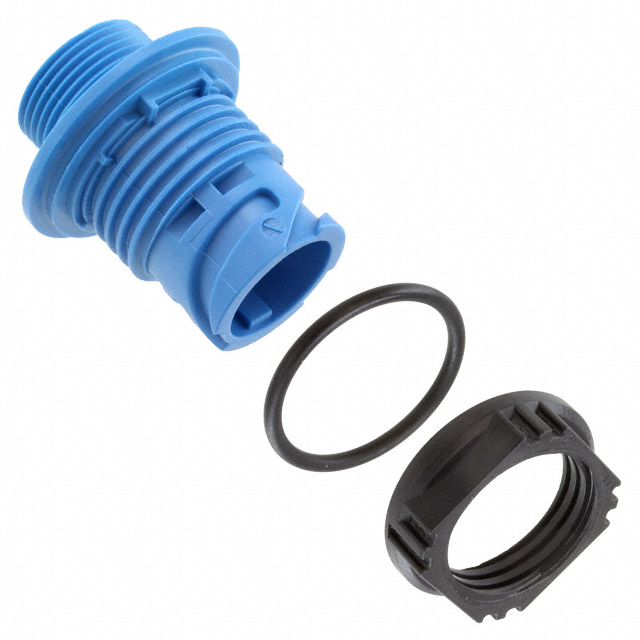

APD-5CP-H
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APD-5CP-H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APD-5CP-H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APD-5CP-H |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT HSNG MALE 1POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.883 | $2.763 | $2.283 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.042 | $1.922 | $1.682 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APD-5CP-H | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 1POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23390 pcs | Data sheet | APD Series Catalog |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell Finish | - | Series | APD 1-Way |
| Packaging | Bulk | Other Names | 1003-2063 1003-2143 1003-2143-ND 121583-0016 121583-0016-ND 1215830016 APD5CPH I121583-0016 I121583-0016-ND |
| Orientation | 5 | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 1 (Power) | Note | Contacts Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | 3 pcs - 1 Connector, 1 Nut, 1 O-Ring |
| Housing Color | Blue | Features | - |
| Fastening Type | Bayonet Lock | Detailed Description | 1 (Power) Position Circular Connector Receptacle Housing Panel Mount |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Type | Crimp | Contact Size | - |
| Contact Shape | Circular | Connector Type | Receptacle Housing |
