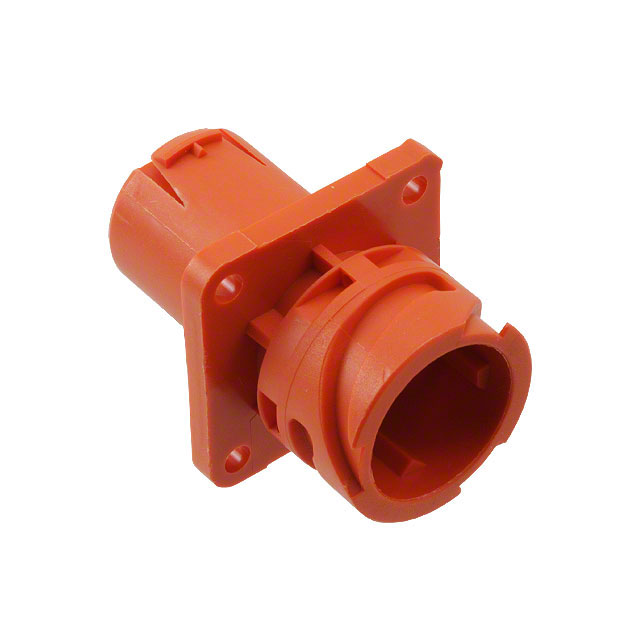

APD-59AP-HV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APD-59AP-HV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APD-59AP-HV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APD-59AP-HV |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT HSNG MALE 4POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $4.013 | $3.647 | $3.10 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.827 | $2.644 | $2.425 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APD-59AP-HV | Manufacturer | Cannon |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 4POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16148 pcs | Data sheet | APD Series Catalog |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell Finish | - | Series | APD 4-Way |
| Packaging | Bulk | Other Names | 1003-2088 121583-0215 1215830215 |
| Orientation | 5 | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 4 | Note | Contacts Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polybutylene Terephthalate (PBT), Glass Filled | Ingress Protection | IP67/69K - Dust Tight, Water Resistant, Waterproof |
| Includes | - | Housing Color | Orange |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 4 Position Circular Connector Receptacle Housing Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 2.5mm | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
