Home > Products > Switches > Pushbutton Switches > GPBS-800L

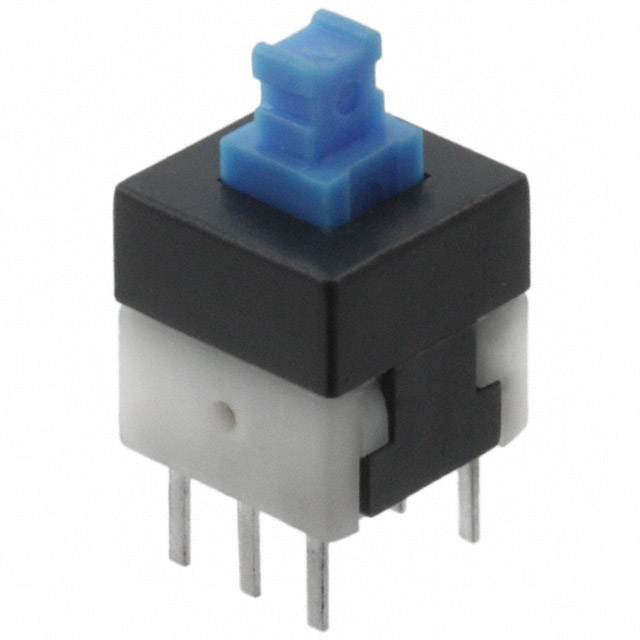

GPBS-800L

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GPBS-800L with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GPBS-800L
Manufacturer	CW Industries
Description	SWITCH PUSHBUTTON DPDT 0.1A 30V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 167399 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.239	$0.221	$0.211	$0.20	$0.195
	$0.19	$0.179	$0.169	$0.142

Product parameter
Data sheet

Product parameter

Part Number	GPBS-800L	Manufacturer	CW Industries
Description	SWITCH PUSHBUTTON DPDT 0.1A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	167399 pcs	Data sheet	GPBS800L Drawing
Category	Switches	Voltage Rating - DC	30V
Type	Standard	Termination Style	PC Pin
Switch Function	On-On	Series	GPBS
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	CW177 GPBS800L	Operating Temperature	-25°C ~ 65°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard Through Hole	Current Rating	100mA (DC)
Color - Actuator/Cap	-	Circuit	DPDT
Actuator Type	Plunger for Cap
