Home > Products > Switches > Pushbutton Switches > GPB556AL05BR

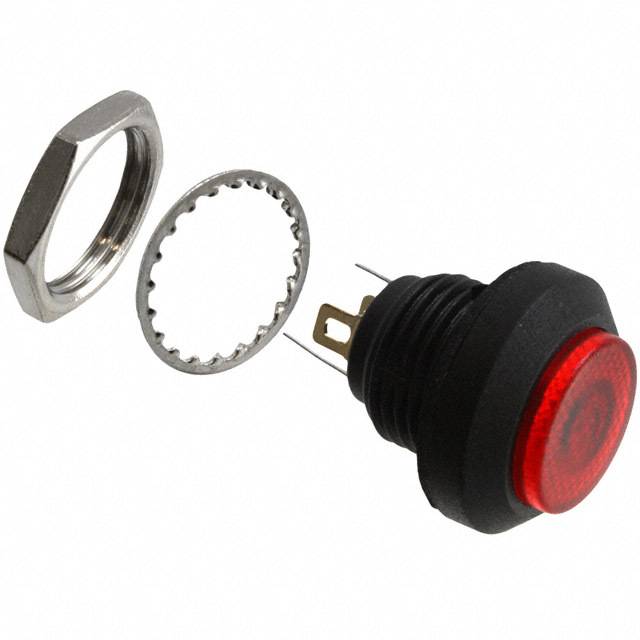

GPB556AL05BR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GPB556AL05BR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GPB556AL05BR
Manufacturer	CW Industries
Description	SWITCH PB SPST-NO 0.125A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 30728 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$1.063

Product parameter
Data sheet

Product parameter

Part Number	GPB556AL05BR	Manufacturer	CW Industries
Description	SWITCH PB SPST-NO 0.125A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30728 pcs	Data sheet	GPB556AL05BR Drawing
Category	Switches	Voltage Rating - AC	125V
Type	Standard, Illuminated	Termination Style	Solder Lug
Switch Function	Off-Mom	Series	GPB
Panel Cutout Dimensions	Circular - 12.00mm Dia	Packaging	Bulk
Other Names	CW159	Operating Temperature	-25°C ~ 85°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	2 VDC	Illumination Type, Color	LED, Red
Features	-	Electrical Life	-
Detailed Description	Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front	Current Rating	125mA (AC)
Color - Actuator/Cap	Red	Circuit	SPST-NO
Actuator Type	Round, Button
