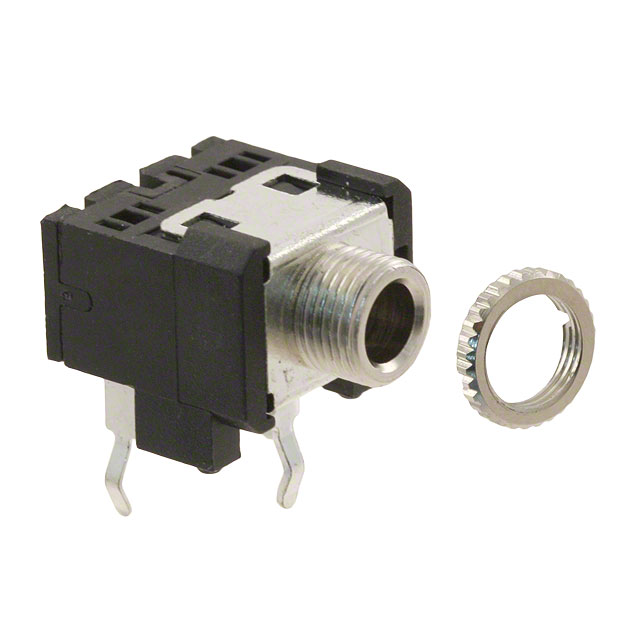

SJ1-3544
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ1-3544 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ1-3544 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ1-3544 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK STEREO 3.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.593 | $0.537 | $0.504 | $0.482 | $0.46 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.416 | $0.383 | $0.329 | $0.307 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ1-3544 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76512 pcs | Data sheet | SJ1-354x |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | M6 | Termination | Kinked Pin |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | SJ1 | Panel Hole Size | 0.236" (5.99mm) |
| Packaging | Bulk | Other Names | 045-0989R CP1-3544 SJ13544 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mating Length/Depth | 0.551" (14.00mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | 2 pcs - 1 Connector, 1 Nut |
| Housing Material | Polybutylene Terephthalate (PBT) | Gender | Female |
| Features | Mounting Hardware, Thread Lock | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin |
| Current Rating | 1A | Contact Material - Plating | Nickel, Tin |
| Contact Material | Brass; Copper Alloy | Connector Type | Phone Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | Brass | Body Color | Silver, Black |
| Actual Diameter | 0.142" (3.60mm) |
