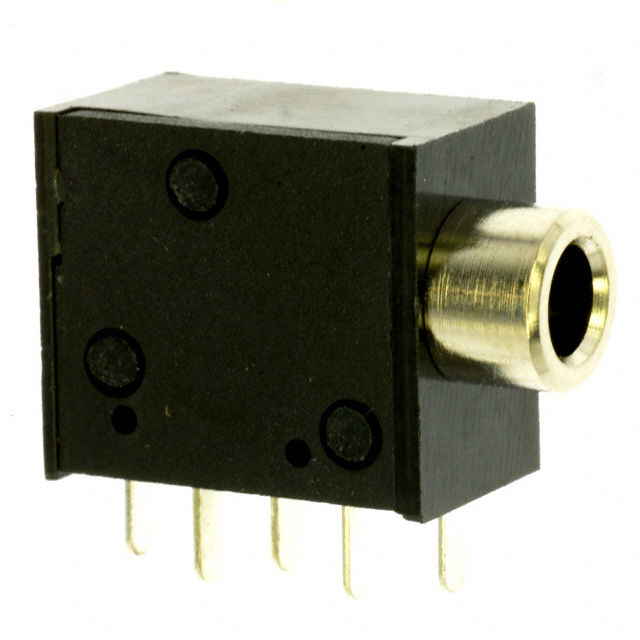

SJ1-3535N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ1-3535N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ1-3535N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ1-3535N |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK STEREO 3.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 200 pcs |
|---|---|---|---|---|---|
| $0.457 | $0.401 | $0.378 | $0.362 | $0.346 | |
| 400 pcs | 600 pcs | 1000 pcs | 2600 pcs | ||
| $0.315 | $0.283 | $0.252 | $0.228 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ1-3535N | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82228 pcs | Data sheet | SJ1-353xN |
| Category | Connectors, Interconnects | Voltage - Rated | 16VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | SJ1 | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 045-0982R CP1-3535N SJ13535N |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 5 Contacts |
| Mounting Type | Through Hole, Right Angle | Mating Length/Depth | 0.551" (14.00mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Two Switches | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Gender | Female |
| Features | - | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Current Rating | 1A | Contact Material - Plating | Tin |
| Contact Material | Brass | Connector Type | Phone Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | Brass | Body Color | Silver, Black |
| Actual Diameter | 0.142" (3.60mm) |
