SJ-3598

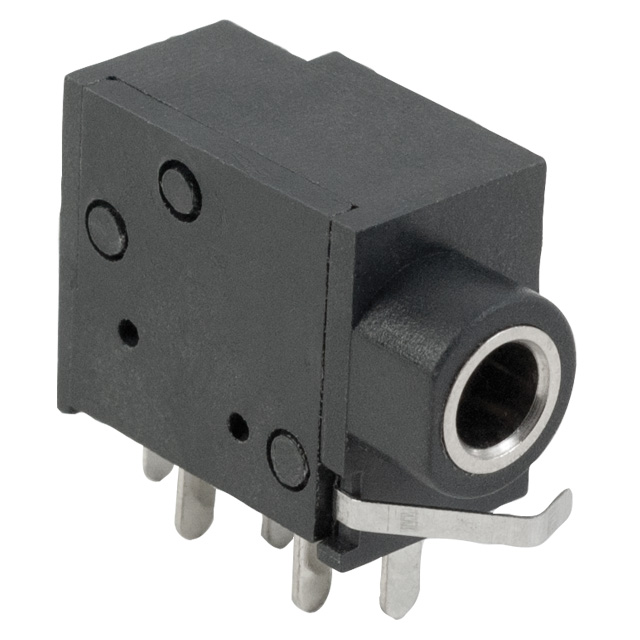

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-3598 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-3598 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-3598 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK STEREO 3.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 186 pcs |
|---|---|---|---|---|---|
| $0.507 | $0.459 | $0.431 | $0.412 | $0.394 | |
| 372 pcs | 558 pcs | 1116 pcs | 2604 pcs | ||
| $0.356 | $0.328 | $0.281 | $0.262 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ-3598 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80170 pcs | Data sheet | SJ-3598 |
| Category | Connectors, Interconnects | Voltage - Rated | 12V |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Shielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | CP-3598 CP-3598R CP-3598R-ND SJ-3598R SJ3598 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 5 Contacts |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.551" (14.00mm) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Gender | Female | Features | Grounding Tab |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder | Current Rating | 1A |
| Contact Material - Plating | Tin | Contact Material | Brass; Copper Alloy |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | Brass |
| Body Color | Black | Actual Diameter | 0.142" (3.60mm) |
