SJ-3566BN

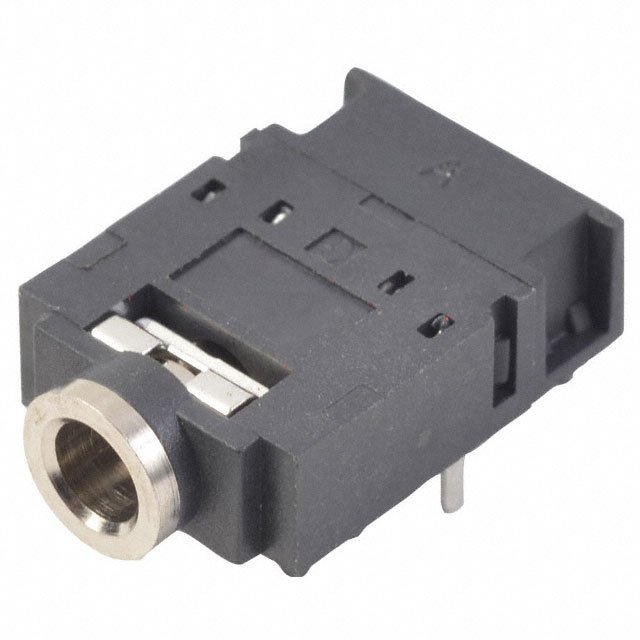

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-3566BN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-3566BN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-3566BN |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK STEREO R/A 3.5MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 576 pcs | ||||
|---|---|---|---|---|---|
| $0.288 | |||||
- Product parameter
Product parameter
| Part Number | SJ-3566BN | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO R/A 3.5MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77694 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | SJ | Panel Hole Size | - |
| Packaging | Tray | Operating Temperature | -25°C ~ 85°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.551" (14.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Gender | Female | Features | Board Guide |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder | Current Rating | 1A |
| Contact Material - Plating | Silver, Tin | Contact Material | Brass, Copper Alloy, Steel |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.142" (3.60mm) |
