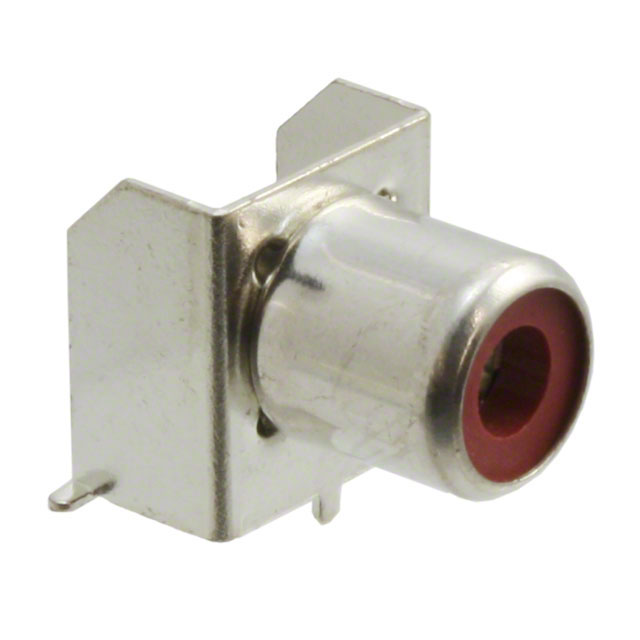

RCJ-012-SMT-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RCJ-012-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RCJ-012-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RCJ-012-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN RCA JACK MONO 3.2MM SMD RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | 1250 pcs | |
|---|---|---|---|---|---|
| $0.263 | $0.236 | $0.23 | $0.21 | ||
| 1750 pcs | 2500 pcs | 6250 pcs | 12500 pcs | ||
| $0.197 | $0.19 | $0.184 | $0.171 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RCJ-012-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN RCA JACK MONO 3.2MM SMD RA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 113886 pcs | Data sheet | RCJ-01x-SMT |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | RCJ | Panel Hole Size | - |
| Packaging | Tape & Reel (TR) | Other Names | CP-1460-2 RCJ-012-SMT RCJ012SMTTR |
| Operating Temperature | -20°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | Red | Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Includes | - | Housing Material | - |
| Gender | Female | Features | - |
| Detailed Description | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder | Contact Material - Plating | Tin |
| Contact Material | Brass | Connector Type | Phono (RCA) Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | Brass | Body Color | Silver |
| Actual Diameter | 0.146" (3.70mm ID), 0.327" (8.30mm OD) |
