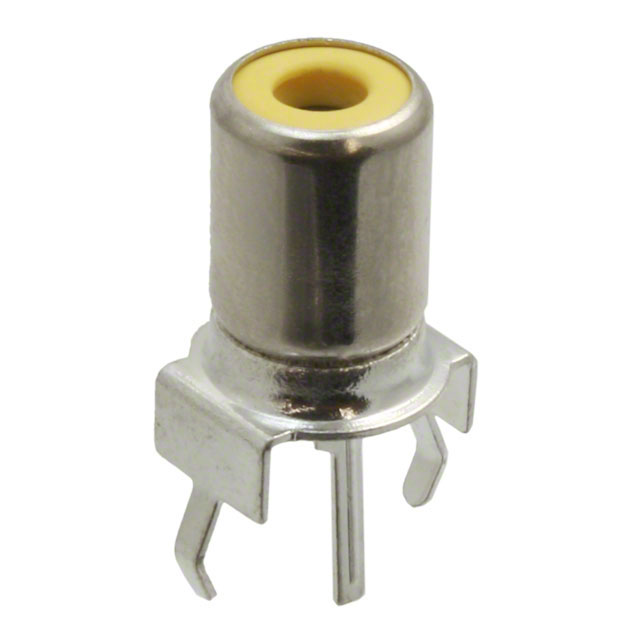

RCJ-024
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RCJ-024 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RCJ-024 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RCJ-024 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN RCA JACK MONO 3.2MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.318 | $0.28 | $0.264 | $0.253 | $0.242 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.22 | $0.198 | $0.176 | $0.159 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RCJ-024 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN RCA JACK MONO 3.2MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 122804 pcs | Data sheet | RCJ-02x |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | RCJ | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 045-0670R CP-1409 RCJ024 |
| Operating Temperature | -20°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Through Hole | Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | Yellow | Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Includes | - | Housing Material | - |
| Gender | Female | Features | Board Lock |
| Detailed Description | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder | Contact Material - Plating | Nickel |
| Contact Material | Brass | Connector Type | Phono (RCA) Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | Brass | Body Color | Silver |
| Actual Diameter | 0.138" (3.50mm ID), 0.327" (8.30mm OD) |
