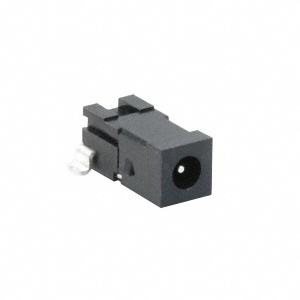

PJ-031H-SMT-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-031H-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-031H-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-031H-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 0.7X2.35MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.175 | $0.164 | $0.158 | $0.153 | $0.145 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-031H-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 0.7X2.35MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 144494 pcs | Data sheet | PJ-031H-SMT-TR Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Tape & Reel (TR) | Other Names | CP-031HPJTR PJ-031H-SMT PJ031HSMTTR |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.315" (8.00mm) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch, Normally Closed |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 | Includes | - |
| Housing Material | Polyamide (PA6T), Nylon 6T | Gender | Male |
| Features | Board Guide | Detailed Description | Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Surface Mount, Right Angle |
| Current Rating | 2.5A | Contact Material - Plating | Silver |
| Contact Material | Brass; Copper Alloy | Connector Type | Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Body Material | - |
| Body Color | Black | Actual Diameter | 0.026" (0.65mm ID), 0.110" (2.80mm OD) |
