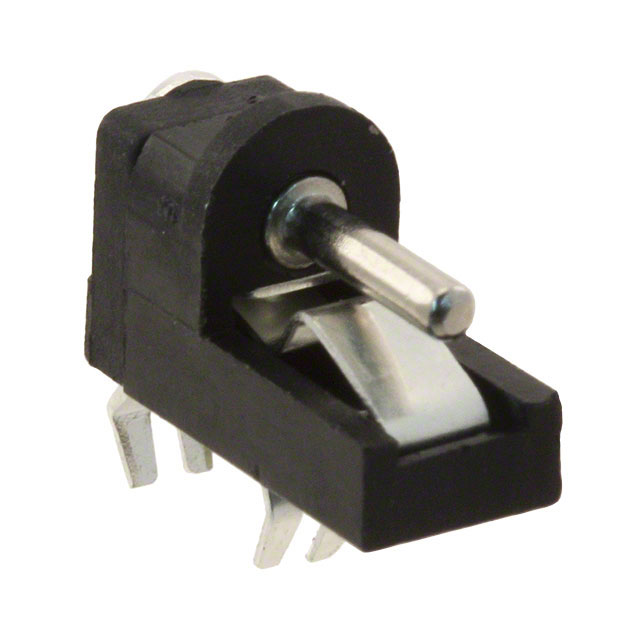

PJ-030DH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-030DH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-030DH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-030DH |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN POWER JACK 1.3X3.4MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.244 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-030DH | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN POWER JACK 1.3X3.4MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77504 pcs | Data sheet | PJ-030DH |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Kinked Pin |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | 045-1127R CP-030DH PJ030DH |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.256" (6.50mm) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 1.30mm ID (0.051"), 3.40mm OD (0.134") |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Male | Features | Board Guide |
| Detailed Description | Power Barrel Connector Jack 1.30mm ID (0.051"), 3.40mm OD (0.134") Through Hole, Right Angle | Current Rating | 3.5A |
| Contact Material - Plating | Silver | Contact Material | Brass; Copper Alloy |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.051" (1.30mm ID), 0.134" (3.40mm OD) |
