MJ1-2503A

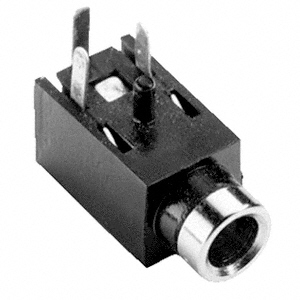

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MJ1-2503A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MJ1-2503A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MJ1-2503A |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK MONO 2.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.279 | $0.262 | $0.236 | $0.21 | $0.201 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.183 | $0.175 | $0.144 | $0.131 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MJ1-2503A | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK MONO 2.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 177764 pcs | Data sheet | MJ1-2503A |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 045-0965R CP1-2503AM MJ12503A |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female | Features | - |
| Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Mono Connector Solder | Current Rating | 1A |
| Contact Material - Plating | Tin | Contact Material | Brass; Copper Alloy |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.102" (2.60mm) |
