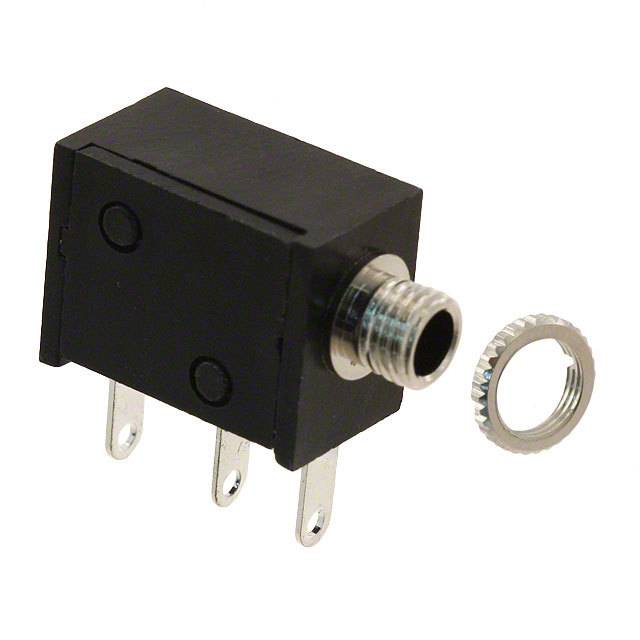

MJ1-2502
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MJ1-2502 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MJ1-2502 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MJ1-2502 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK MONO 2.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.527 | $0.478 | $0.449 | $0.429 | $0.41 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.371 | $0.341 | $0.293 | $0.273 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MJ1-2502 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK MONO 2.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84339 pcs | Data sheet | MJ1-2502 |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | M4 | Termination | Solder Eyelet(s) |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | - | Panel Hole Size | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 045-1435R CP1-2502 MJ12502 |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Includes | 2 pcs - 1 Connector, 1 Nut | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Mono Connector Solder Eyelet(s) | Current Rating | 1A |
| Contact Material - Plating | Tin | Contact Material | Brass; Copper Alloy |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.102" (2.60mm) |
