HSS-B20-0635H

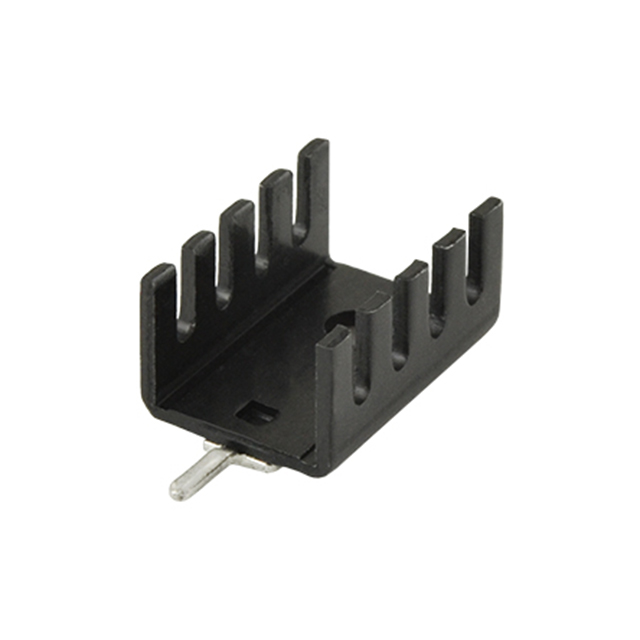

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSS-B20-0635H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSS-B20-0635H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSS-B20-0635H |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | HEATSINK TO-220 2.6W ALUMINUM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.147 | $0.139 | $0.132 | $0.129 | $0.127 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.118 | $0.111 | $0.101 | $0.097 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSS-B20-0635H | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | HEATSINK TO-220 2.6W ALUMINUM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 246653 pcs | Data sheet | HSS-B20-0635 Series Datasheet |
| Category | Fans, Thermal Management | Width | 0.250" (6.35mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 28.85°C/W |
| Thermal Resistance @ Forced Air Flow | 10.68°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.6W @ 75°C |
| Package Cooled | TO-220 | Other Names | 102-4176 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 0.520" (13.21mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.748" (19.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 2.6W @ 75°C Board Level, Vertical | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Attachment Method | PC Pin |
