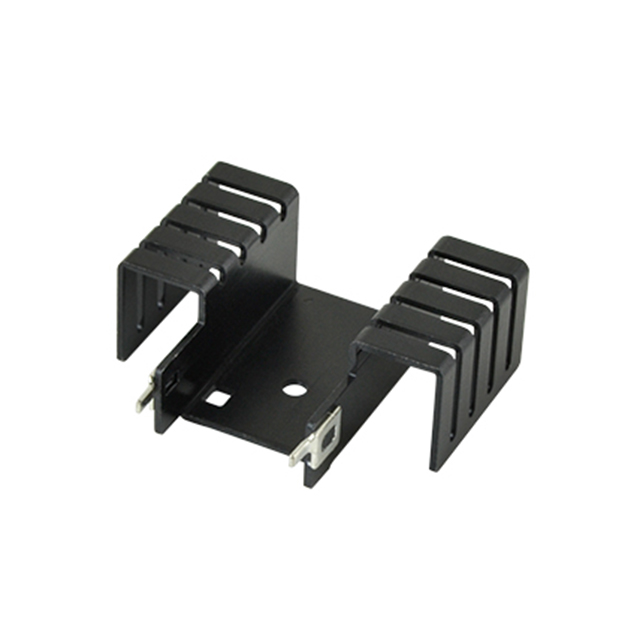

HSS-B20-05H
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSS-B20-05H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSS-B20-05H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSS-B20-05H |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | HEATSINK TO-220 9.8W ALUMINUM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5400 pcs | ||||
|---|---|---|---|---|---|
| $0.275 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSS-B20-05H | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | HEATSINK TO-220 9.8W ALUMINUM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72649 pcs | Data sheet | HSS-B20-05H Datasheet |
| Category | Fans, Thermal Management | Width | 2.007" (50.98mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 7.65°C/W |
| Thermal Resistance @ Forced Air Flow | 2.01°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 9.8W @ 75°C |
| Package Cooled | TO-220 | Material Finish | Black Anodized |
| Material | Aluminum | Length | 0.728" (18.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 1.614" (41.00mm) |
| Diameter | - | Detailed Description | Heat Sink TO-220 Aluminum 9.8W @ 75°C Board Level, Vertical |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Attachment Method | Bolt On and PC Pin |
