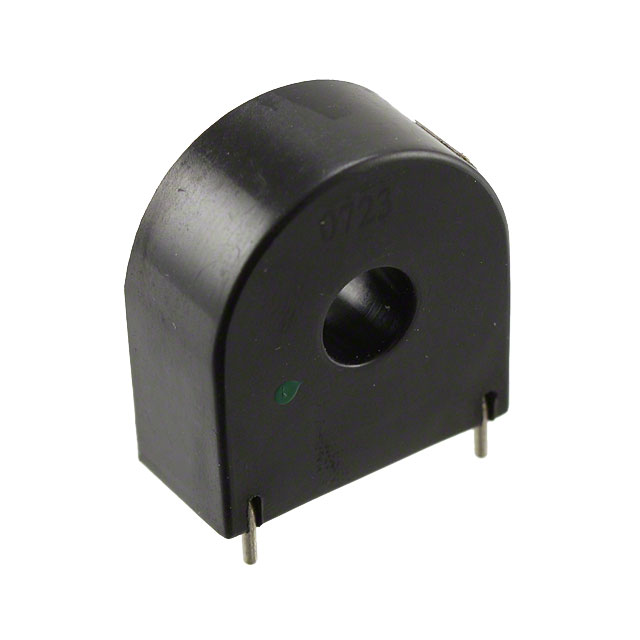

CR8348-1000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CR8348-1000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CR8348-1000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CR8348-1000 |
|---|---|
| Manufacturer | CR Magnetics, Inc. |
| Description | CURR SENSE XFMR 20A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.411 | $2.613 | $2.214 | $2.177 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.069 | $2.047 | $2.018 | $1.996 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CR8348-1000 | Manufacturer | CR Magnetics, Inc. |
|---|---|---|---|
| Description | CURR SENSE XFMR 20A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18088 pcs | Data sheet | CR8300 Series |
| Category | Transformers | Weight | - |
| Type | Non-Invasive (Solid Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 0.925" L x 0.433" W (23.50mm x 11.00mm) |
| Series | CR8300 | Ratings | - |
| Packaging | Bulk | Other Names | 582-1161 CR8348-1000-ND CR83481000 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.984" (25.00mm) | Frequency Range | 20Hz ~ 1kHz |
| Energy Time (E.T.) | - | Detailed Description | 20A Current Sense Transformer 20Hz ~ 1kHz 24 Ohm Through Hole |
| DC Resistance (DCR) | 24 Ohm | Current Ratio | 1000:1 |
| Current Rating | 20A |
