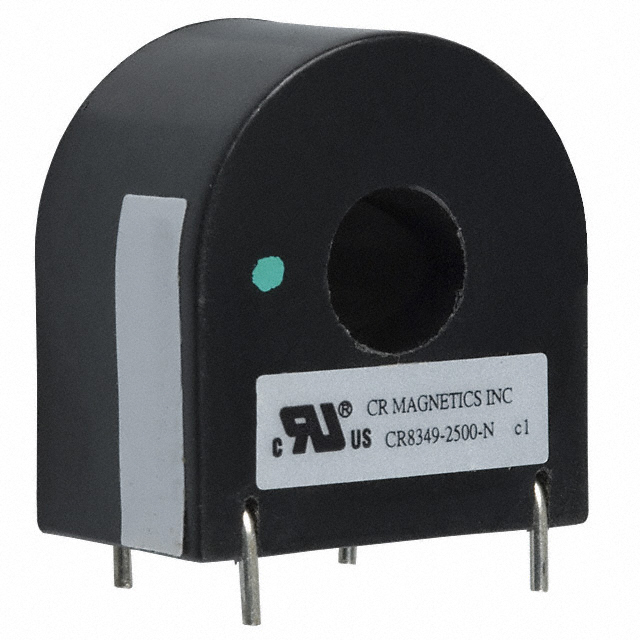

CR8349-2500-N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CR8349-2500-N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CR8349-2500-N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CR8349-2500-N |
|---|---|
| Manufacturer | CR Magnetics, Inc. |
| Description | CURR SENSE XFMR 75A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.381 | $3.235 | $2.986 | $2.886 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.807 | $2.767 | $2.737 | $2.687 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CR8349-2500-N | Manufacturer | CR Magnetics, Inc. |
|---|---|---|---|
| Description | CURR SENSE XFMR 75A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14262 pcs | Data sheet | CR8300 Series |
| Category | Transformers | Weight | - |
| Type | Non-Invasive (Solid Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 1.024" L x 0.670" W (26.00mm x 17.00mm) |
| Series | CR8300 | Ratings | - |
| Packaging | Bulk | Other Names | 582-1013 CR83492500N |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 1.102" (28.00mm) | Frequency Range | 20Hz ~ 1kHz |
| Energy Time (E.T.) | - | Detailed Description | 75A Current Sense Transformer 20Hz ~ 1kHz 190 Ohm Through Hole |
| DC Resistance (DCR) | 190 Ohm | Current Ratio | 2500:1 |
| Current Rating | 75A |
