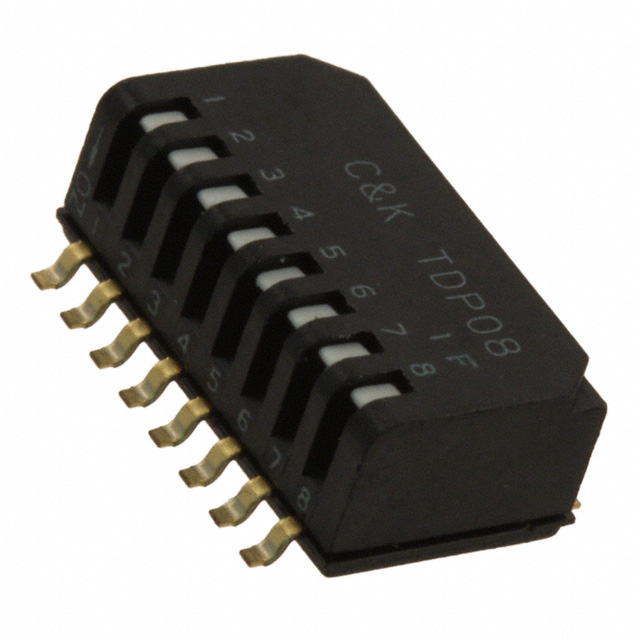

TDP08H0SBD1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TDP08H0SBD1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TDP08H0SBD1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TDP08H0SBD1 |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH PIANO DIP SPST 25MA 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | 120 pcs |
|---|---|---|---|---|---|
| $1.224 | $1.173 | $1.122 | $1.071 | $0.944 | |
| 280 pcs | 520 pcs | 1000 pcs | 5000 pcs | ||
| $0.893 | $0.867 | $0.74 | $0.689 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TDP08H0SBD1 | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH PIANO DIP SPST 25MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44591 pcs | Data sheet | TDP Series Dip Datasheet |
| Category | Switches | Washable | No |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | TDP | Pitch | 0.050" (1.27mm), Half |
| Packaging | Tube | Other Names | *TDP08H0SBD1 CKN9421 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 8 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Length | 0.444" (11.28mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.161" (4.10mm) | Features | - |
| Electrical Life | 1,000 Cycles | Detailed Description | Dip Switch SPST 8 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC |
| Current Rating | 25mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyphenylene Sulfide (PPS), Glass Filled | Actuator Type | Piano |
| Actuator Level | Flush, Recessed |
