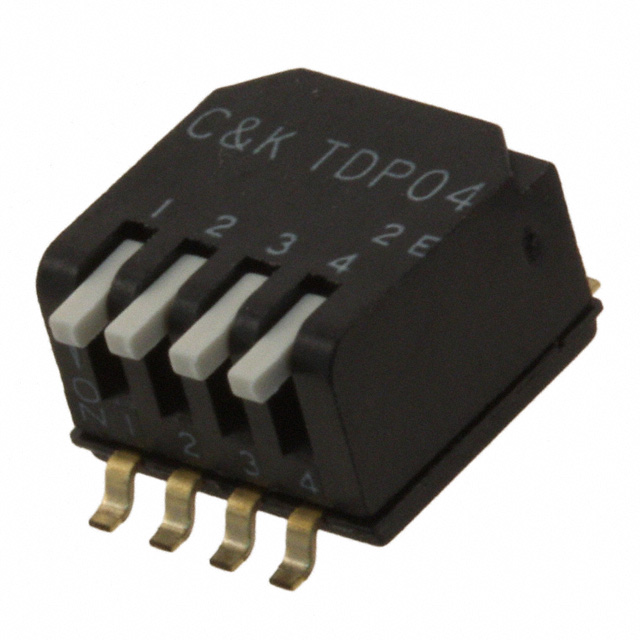

TDP04H1SBD1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TDP04H1SBD1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TDP04H1SBD1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TDP04H1SBD1 |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH PIANO DIP SPST 25MA 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 70 pcs | 140 pcs |
|---|---|---|---|---|---|
| $0.867 | $0.841 | $0.798 | $0.746 | $0.728 | |
| 280 pcs | 560 pcs | 1050 pcs | 5040 pcs | ||
| $0.624 | $0.607 | $0.52 | $0.477 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TDP04H1SBD1 | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH PIANO DIP SPST 25MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82340 pcs | Data sheet | TDP Series Dip Datasheet |
| Category | Switches | Washable | No |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | TDP | Pitch | 0.050" (1.27mm), Half |
| Packaging | Tube | Other Names | *TDP04H1SBD1 CKN9426 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Length | 0.244" (6.20mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.161" (4.10mm) | Features | - |
| Electrical Life | 1,000 Cycles | Detailed Description | Dip Switch SPST 4 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC |
| Current Rating | 25mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyphenylene Sulfide (PPS), Glass Filled | Actuator Type | Piano |
| Actuator Level | Raised |
