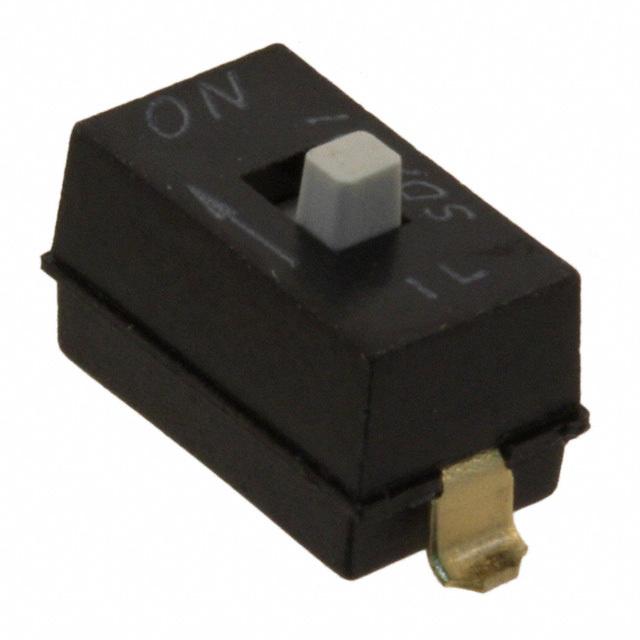

SDA01H1SBD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDA01H1SBD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDA01H1SBD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDA01H1SBD |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH SLIDE DIP SPST 25MA 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.432 | $0.423 | $0.398 | $0.374 | $0.358 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.341 | $0.309 | $0.284 | $0.232 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDA01H1SBD | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 25MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91737 pcs | Data sheet | SDA Series Dip Datasheet |
| Category | Switches | Washable | No |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | SDA | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | *SDA01H1SBD CKN10358 Q5042754 SDA01H1SBD-ND |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000 Cycles | Manufacturer Standard Lead Time | 16 Weeks |
| Length | 0.178" (4.52mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.214" (5.45mm) | Features | - |
| Electrical Life | 1,000 Cycles | Detailed Description | Dip Switch SPST 1 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC |
| Current Rating | 25mA | Contact Material | Beryllium Copper |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyphenylene Sulfide (PPS) | Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
