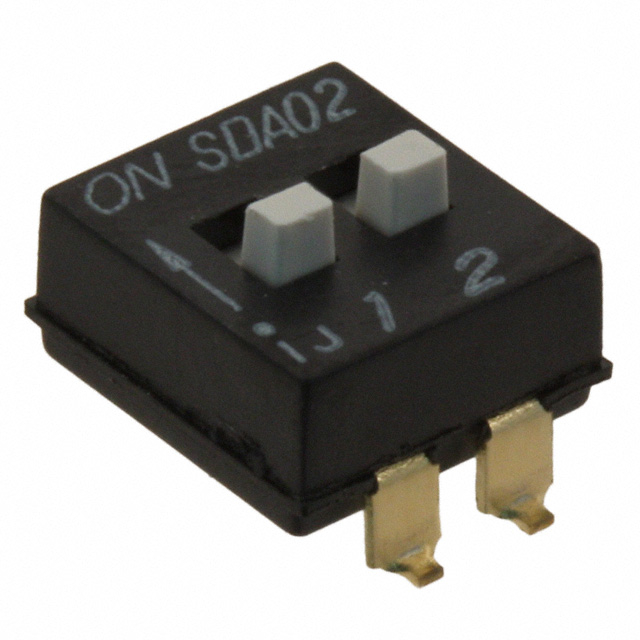

SDA02H1SBD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDA02H1SBD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDA02H1SBD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDA02H1SBD |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH SLIDE DIP SPST 25MA 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.522 | $0.511 | $0.482 | $0.452 | $0.433 | |
| 300 pcs | 540 pcs | 1020 pcs | 5040 pcs | ||
| $0.413 | $0.374 | $0.344 | $0.28 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDA02H1SBD | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 25MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83482 pcs | Data sheet | SDA Series Dip Datasheet |
| Category | Switches | Washable | No |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | SDA | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | *SDA02H1SBD CKN6056 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000 Cycles | Manufacturer Standard Lead Time | 16 Weeks |
| Length | 0.278" (7.06mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.214" (5.45mm) | Features | - |
| Electrical Life | 1,000 Cycles | Detailed Description | Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC |
| Current Rating | 25mA | Contact Material | Beryllium Copper |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyphenylene Sulfide (PPS) | Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
