PTS525SM15SMTR2 LFS

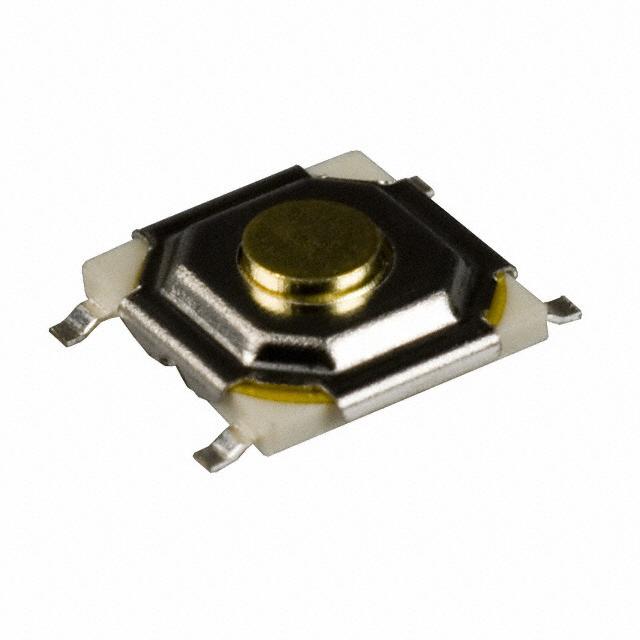

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTS525SM15SMTR2 LFS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PTS525SM15SMTR2 LFS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTS525SM15SMTR2 LFS |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | |||
|---|---|---|---|---|---|
| $0.064 | $0.053 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTS525SM15SMTR2 LFS | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 435953 pcs | Data sheet | PTS525 Series Tact Datasheet |
| Category | Switches | Termination Style | Gull Wing |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | PTS525 | Packaging | Tape & Reel (TR) |
| Outline | 5.25mm x 5.25mm | Other Names | CKN9104TR PTS525SM10SMTR LFS PTS525SM10SMTRLFS PTS525SM15SMTR2LFS Y96C252Q1FP LFS Y96C252Q1FPLFS Y97CT23B2CCFP |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.02A @ 15VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 1.50mm |
