PTS525SK08SMTR-2 LFS

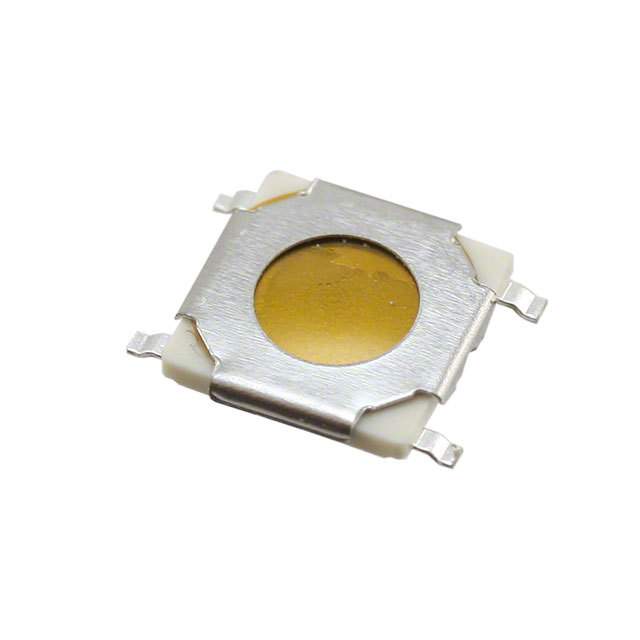

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTS525SK08SMTR-2 LFS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PTS525SK08SMTR-2 LFS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTS525SK08SMTR-2 LFS |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.159 | $0.155 | $0.149 | $0.144 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.138 | $0.127 | $0.111 | $0.094 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTS525SK08SMTR-2 LFS | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 251514 pcs | Data sheet | PTS525 Series Tact Datasheet |
| Category | Switches | Termination Style | Gull Wing |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | PTS525 | Packaging | Cut Tape (CT) |
| Outline | 5.25mm x 5.25mm | Other Names | *PTS525SK08SMTR-2 LFS CKN10229CT |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 260gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 200,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Contact Rating @ Voltage | 0.02A @ 15VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | Polyamide (PA66), Nylon 6/6 | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 0.80mm |
