Home > Products > Switches > Slide Switches > OS203013MT7QN1

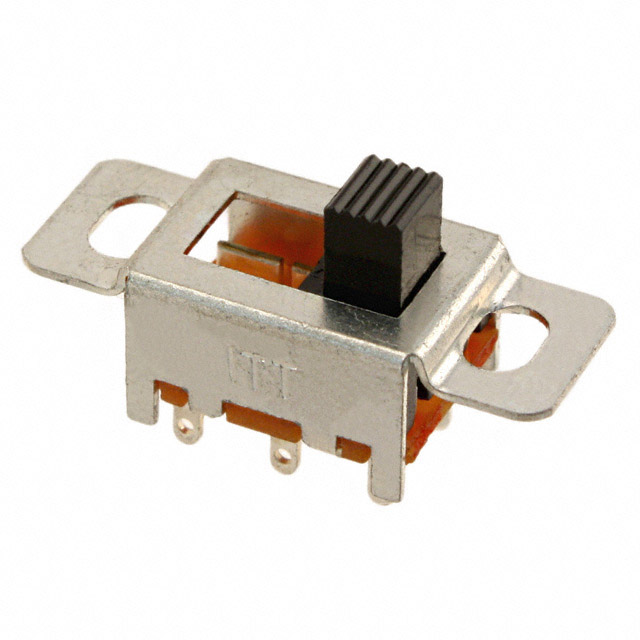

OS203013MT7QN1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OS203013MT7QN1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OS203013MT7QN1
Manufacturer	C&K
Description	SWITCH SLIDE DPDT 300MA 30V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 132179 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.258	$0.247	$0.242	$0.216	$0.206
	$0.20	$0.17	$0.164	$0.144

Product parameter
Data sheet

Product parameter

Part Number	OS203013MT7QN1	Manufacturer	C&K
Description	SWITCH SLIDE DPDT 300MA 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	132179 pcs	Data sheet	OS Series Slide Datasheet
Category	Switches	Voltage Rating - DC	30V
Termination Style	Solder Lug	Switch Travel	3.00mm
Switch Function	On-Off-On	Series	OS
Packaging	Bulk	Other Names	*OS203013MT7QN1 CKN9548 OS203013MT7QN1-ND
Operating Temperature	-30°C ~ 70°C	Operating Force	-
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000 Cycles	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	10,000 Cycles	Detailed Description	Slide Switch DPDT Panel Mount
Current Rating	300mA (DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Copper Alloy	Contact Finish	Silver
Circuit	DPDT	Actuator Type	Standard
Actuator Material	Polyoxymethylene (Acetal) (POM)	Actuator Length	4.00mm
