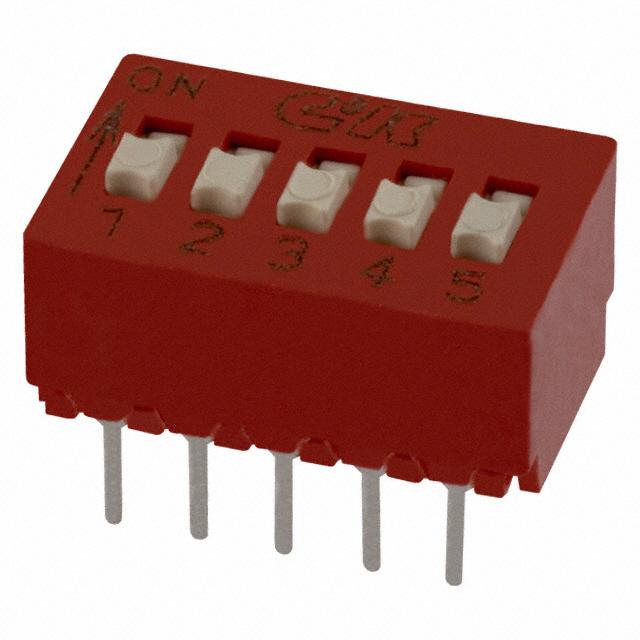

BD05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BD05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BD05 |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH SLIDE DIP SPST 100MA 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 35 pcs | 70 pcs | 105 pcs |
|---|---|---|---|---|---|
| $0.533 | $0.524 | $0.494 | $0.464 | $0.443 | |
| 280 pcs | 525 pcs | 1015 pcs | 5005 pcs | ||
| $0.423 | $0.383 | $0.353 | $0.287 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BD05 | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81835 pcs | Data sheet | BD Series Standard Profile Datasheet |
| Category | Switches | Washable | Yes |
| Voltage Rating | 5VDC | Termination Style | PC Pin |
| Series | BD | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | *BD05 CKN3004 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 5 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 10,000 Cycles | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 0.580" (14.73mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.297" (7.54mm) | Features | - |
| Electrical Life | 10,000 Cycles | Detailed Description | Dip Switch SPST 5 Position Through Hole Slide (Standard) Actuator 100mA 5VDC |
| Current Rating | 100mA | Contact Material | Phosphor Bronze |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polybutylene Terephthalate (PBT), Glass Filled | Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
