Home > Products > RF/IF and RFID > Balun > BD0810J50100AHF

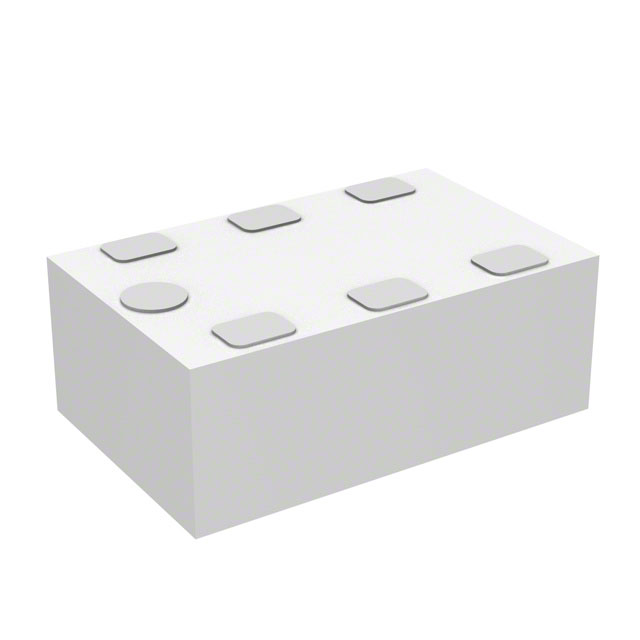

BD0810J50100AHF

BD0810J50100AHF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD0810J50100AHF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BD0810J50100AHF
Manufacturer	Anaren
Description	BALUN 800MHZ-1GHZ 50/100 0805
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 269525 pcs
Reference Price (In US Dollars)	4000 pcs	8000 pcs	28000 pcs
Reference Price (In US Dollars)	$0.106	$0.088	$0.08

Product parameter
Data sheet

Product parameter

Part Number	BD0810J50100AHF	Manufacturer	Anaren
Description	BALUN 800MHZ-1GHZ 50/100 0805	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	269525 pcs	Data sheet	BD0810J50100AHF
Category	RF/IF and RFID	Series	Xinger®
Return Loss (Min)	13dB	Phase Difference	1°
Packaging	Tape & Reel (TR)	Package / Case	0805 (2012 Metric)
Other Names	1173-1056-2 66300-G001	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss (Max)	0.95dB
Impedance - Unbalanced/Balanced	50 / 100 Ohm	Frequency Range	800MHz ~ 1GHz
Detailed Description	RF Balun 800MHz ~ 1GHz 50 / 100 Ohm 0805 (2012 Metric)
