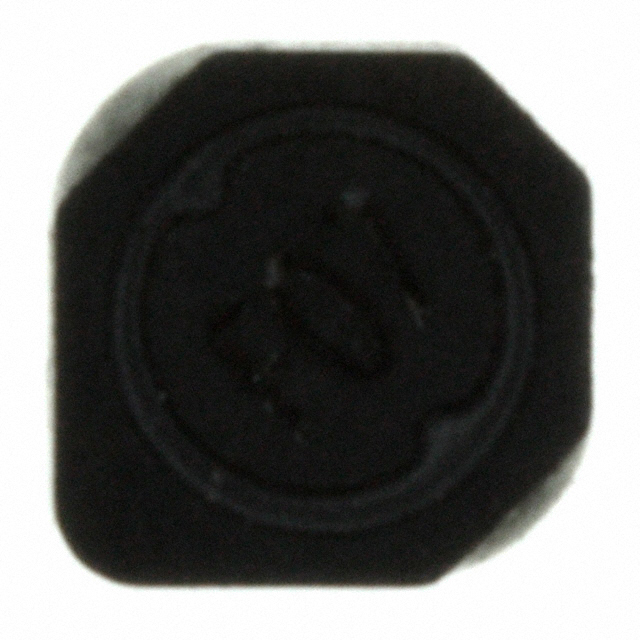

SD3114-6R8-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD3114-6R8-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD3114-6R8-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD3114-6R8-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 6.8UH 710MA 296 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4100 pcs | ||||
|---|---|---|---|---|---|
| $0.42 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD3114-6R8-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 6.8UH 710MA 296 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94324 pcs | Data sheet | SD3114 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.122" L x 0.122" W (3.10mm x 3.10mm) | Shielding | Shielded |
| Series | SD3114 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 513-1562-2 SD3114-6R8-R-ND |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 6.8µH |
| Height - Seated (Max) | 0.055" (1.40mm) | Frequency - Self Resonant | - |
| Detailed Description | 6.8µH Shielded Wirewound Inductor 710mA 296 mOhm Nonstandard | DC Resistance (DCR) | 296 mOhm |
| Current Rating | 710mA | Current - Saturation | 980mA |
