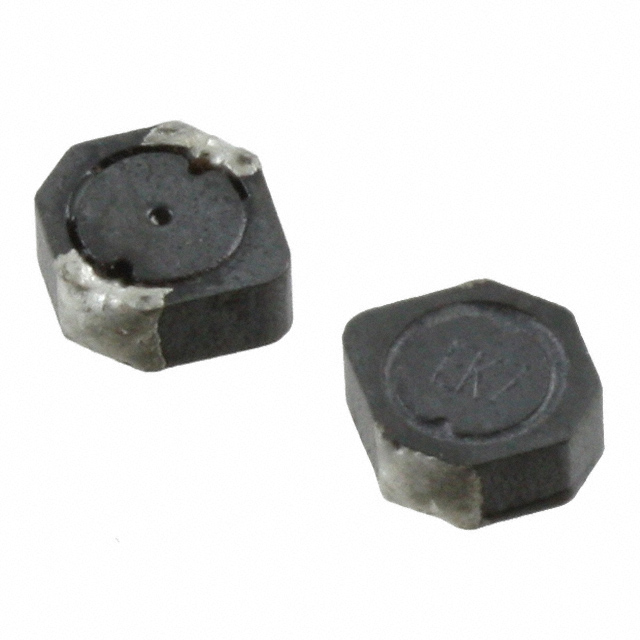

SD3114-4R7-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD3114-4R7-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD3114-4R7-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD3114-4R7-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 4.7UH 770MA 251 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.045 | $0.963 | $0.674 | $0.546 | $0.498 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SD3114-4R7-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 4.7UH 770MA 251 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61471 pcs | Data sheet | SD3114 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.122" L x 0.122" W (3.10mm x 3.10mm) | Shielding | Shielded |
| Series | SD3114 | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 513-1561-1 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 4.7µH |
| Height - Seated (Max) | 0.055" (1.40mm) | Frequency - Self Resonant | - |
| Detailed Description | 4.7µH Shielded Wirewound Inductor 770mA 251 mOhm Nonstandard | DC Resistance (DCR) | 251 mOhm |
| Current Rating | 770mA | Current - Saturation | 1.14A |
