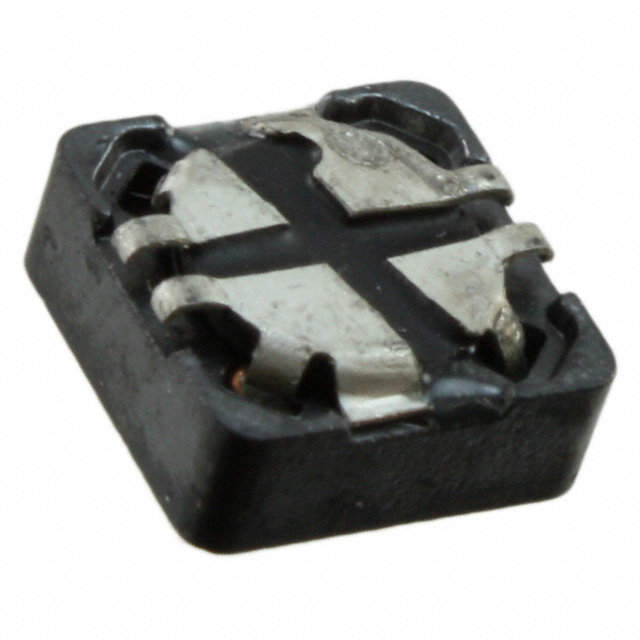

DRQ73-3R3-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DRQ73-3R3-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DRQ73-3R3-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DRQ73-3R3-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 3.54UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1350 pcs | 2700 pcs | 6750 pcs | ||
|---|---|---|---|---|---|
| $0.294 | $0.284 | $0.275 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DRQ73-3R3-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 3.54UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69431 pcs | Data sheet | DRQ Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | Shielding | Shielded |
| Series | DRQ | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1240-2 DRQ73-3R3 DRQ73-3R3-ND DRQ73-3R3-R-ND DRQ73-3R3R DRQ733R3R |
Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 14.16µH |
| Inductance - Connected In Parallel | 3.54µH | Height | 0.140" (3.55mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 14.16µH Inductance - Connected in Series 3.54µH Inductance - Connected in Parallel 25.9 mOhm DC Resistance (DCR) - Parallel 3.31A Nonstandard | DC Resistance (DCR) - Series | 103.5 mOhm |
| DC Resistance (DCR) - Parallel | 25.9 mOhm | Current Saturation - Series | 2.11A |
| Current Saturation - Parallel | 4.22A | Current Rating - Series | 1.66A |
| Current Rating - Parallel | 3.31A |
