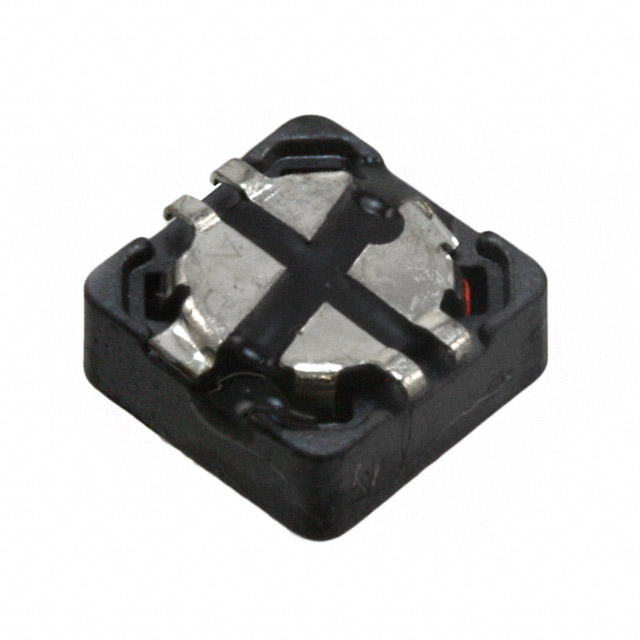

DRQ73-220-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DRQ73-220-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DRQ73-220-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DRQ73-220-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 22.65UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.726 | $0.669 | $0.468 | $0.379 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DRQ73-220-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 22.65UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102140 pcs | Data sheet | DRQ Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | Shielding | Shielded |
| Series | DRQ | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Nonstandard |
| Other Names | 513-1246-1 | Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 90.6µH |
| Inductance - Connected In Parallel | 22.65µH | Height | 0.140" (3.55mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 90.6µH Inductance - Connected in Series 22.65µH Inductance - Connected in Parallel 107 mOhm DC Resistance (DCR) - Parallel 1.62A Nonstandard | DC Resistance (DCR) - Series | 429 mOhm |
| DC Resistance (DCR) - Parallel | 107 mOhm | Current Saturation - Series | 830mA |
| Current Saturation - Parallel | 1.67A | Current Rating - Series | 811mA |
| Current Rating - Parallel | 1.62A |
