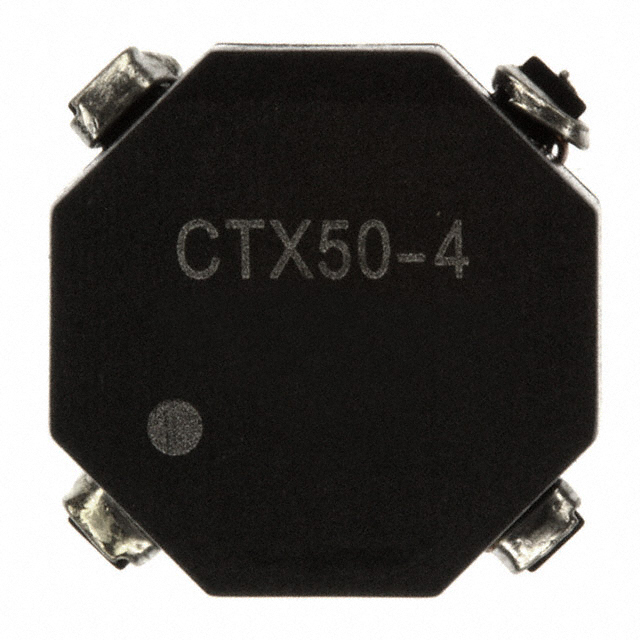

CTX50-4-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX50-4-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX50-4-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX50-4-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 50.18UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.345 | $2.132 | $1.45 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX50-4-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 50.18UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24175 pcs | Data sheet | CTX Series ECONO-PAC, OCTA-PAC/PLUS |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Shielding | Unshielded |
| Series | OCTA-PAC® | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Nonstandard |
| Other Names | 513-1014-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 200.7µH |
| Inductance - Connected In Parallel | 50.18µH | Height | 0.250" (6.35mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 200.7µH Inductance - Connected in Series 50.18µH Inductance - Connected in Parallel 111 mOhm Max DC Resistance (DCR) - Parallel 1.5A Nonstandard | DC Resistance (DCR) - Series | 443 mOhm Max |
| DC Resistance (DCR) - Parallel | 111 mOhm Max | Current Rating - Series | 750mA |
| Current Rating - Parallel | 1.5A |
