CTX50-2P-R

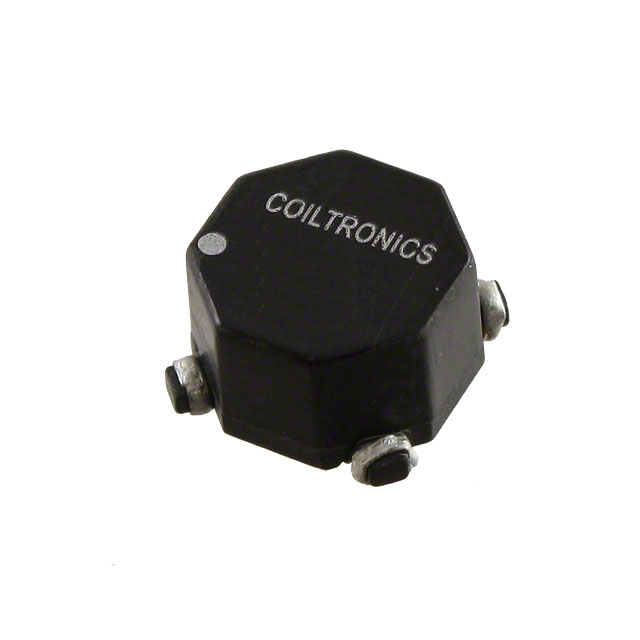

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX50-2P-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX50-2P-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX50-2P-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 49.1UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | 1600 pcs | 4000 pcs | 5600 pcs | |
|---|---|---|---|---|---|
| $0.582 | $0.564 | $0.545 | $0.526 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX50-2P-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 49.1UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60976 pcs | Data sheet | CTX Series ECONO-PAC, OCTA-PAC/PLUS |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Shielding | Unshielded |
| Series | Econo-Pac™ | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1738-2 CTX50-2P CTX50-2P-ND CTX50-2P-R-ND CTX502PR |
Operating Temperature | -40°C ~ 85°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 196.38µH |
| Inductance - Connected In Parallel | 49.1µH | Height | 0.235" (5.97mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 196.38µH Inductance - Connected in Series 49.1µH Inductance - Connected in Parallel 305 mOhm Max DC Resistance (DCR) - Parallel 820mA Nonstandard | DC Resistance (DCR) - Series | 1.221 Ohm Max |
| DC Resistance (DCR) - Parallel | 305 mOhm Max | Current Rating - Series | 410mA |
| Current Rating - Parallel | 820mA |
