CTX16-17309-R

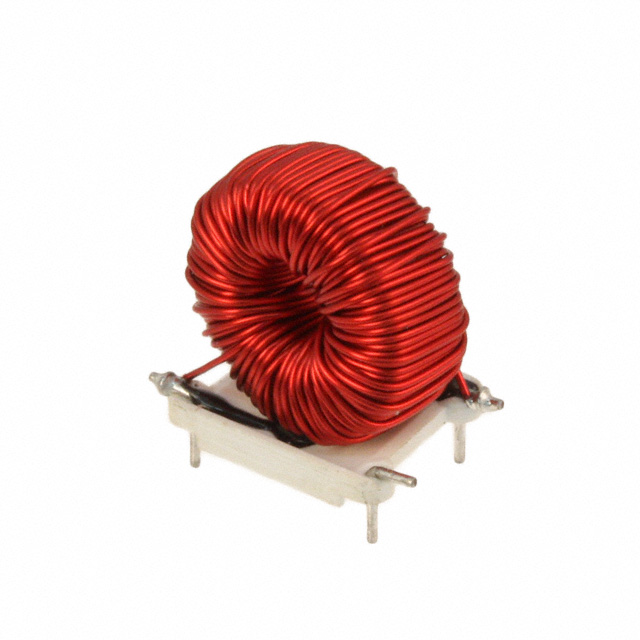

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX16-17309-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX16-17309-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX16-17309-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 200UH 2A 225 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $4.693 | $4.543 | $4.028 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX16-17309-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 200UH 2A 225 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7901 pcs | Data sheet | CTX16-17309-R |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | - | Supplier Device Package | - |
| Size / Dimension | 1.386" L x 0.866" W (35.20mm x 22.00mm) | Shielding | Unshielded |
| Series | PFC | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Radial | Other Names | 513-1656 CTX1617309R |
| Operating Temperature | -20°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 200µH |
| Height - Seated (Max) | 1.319" (33.50mm) | Frequency - Self Resonant | - |
| Detailed Description | 200µH Unshielded Toroidal Inductor 2A 225 mOhm Max Radial | DC Resistance (DCR) | 225 mOhm Max |
| Current Rating | 2A | Current - Saturation | - |
