CTX16-15954

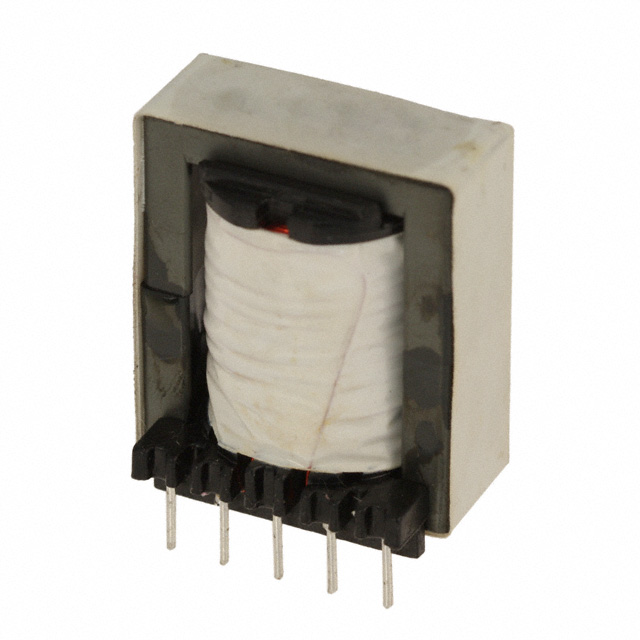

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX16-15954 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX16-15954 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX16-15954 |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 1MH 3.1A 212 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.889 | $3.598 | $2.917 | $2.723 | $2.586 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX16-15954 | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 1MH 3.1A 212 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14119 pcs | Data sheet | CTX16-15954 |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | - | Supplier Device Package | - |
| Size / Dimension | 1.181" L x 0.945" W (30.00mm x 24.00mm) | Shielding | Unshielded |
| Series | PFC | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Radial | Other Names | 513-1655 CTX1615954 |
| Operating Temperature | -20°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 10kHz | Inductance | 1mH |
| Height - Seated (Max) | 1.417" (36.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 1mH Unshielded Toroidal Inductor 3.1A 212 mOhm Max Radial | DC Resistance (DCR) | 212 mOhm Max |
| Current Rating | 3.1A | Current - Saturation | - |
