CTX150-1-R

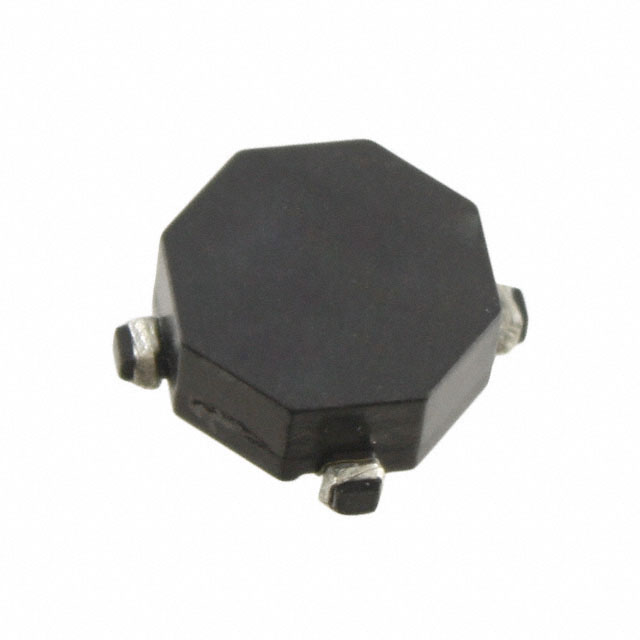

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX150-1-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX150-1-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX150-1-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 148.23UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.142 | $1.964 | $1.286 | $1.143 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX150-1-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 148.23UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29950 pcs | Data sheet | CTX Series ECONO-PAC, OCTA-PAC/PLUS |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Shielding | Unshielded |
| Series | OCTA-PAC® | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Nonstandard |
| Other Names | 513-1724-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 592.9µH |
| Inductance - Connected In Parallel | 148.23µH | Height | 0.165" (4.19mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 592.9µH Inductance - Connected in Series 148.23µH Inductance - Connected in Parallel 965 mOhm Max DC Resistance (DCR) - Parallel 380mA Nonstandard | DC Resistance (DCR) - Series | 3.861 Ohm Max |
| DC Resistance (DCR) - Parallel | 965 mOhm Max | Current Rating - Series | 190mA |
| Current Rating - Parallel | 380mA |
