CTX15-4P-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX15-4P-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX15-4P-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX15-4P-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 14.76UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | ||||
|---|---|---|---|---|---|
| $0.836 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX15-4P-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 14.76UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38503 pcs | Data sheet | CTX Series ECONO-PAC, OCTA-PAC/PLUS |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |

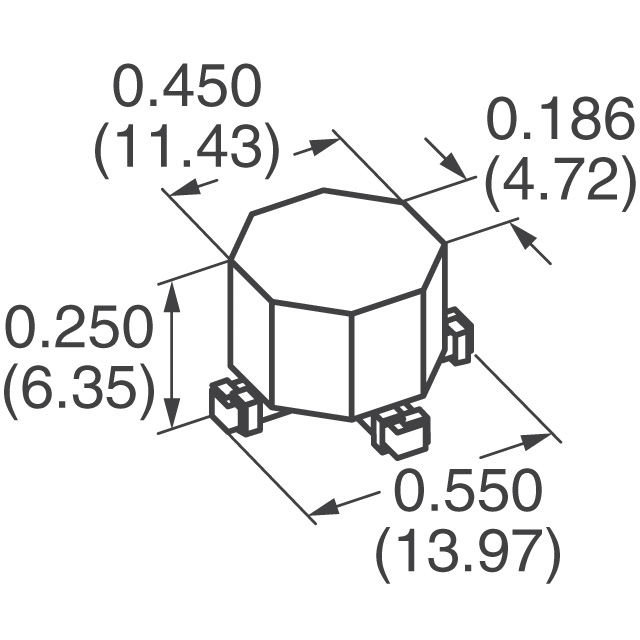

| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Shielding | Unshielded |
| Series | Econo-Pac™ | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | CTX15-4P CTX15-4P-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 59.05µH |
| Inductance - Connected In Parallel | 14.76µH | Height | 0.250" (6.35mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 59.05µH Inductance - Connected in Series 14.76µH Inductance - Connected in Parallel 57 mOhm Max DC Resistance (DCR) - Parallel 2.3A Nonstandard | DC Resistance (DCR) - Series | 228 mOhm Max |
| DC Resistance (DCR) - Parallel | 57 mOhm Max | Current Rating - Series | 1.15A |
| Current Rating - Parallel | 2.3A |
