CTX100-1P-R

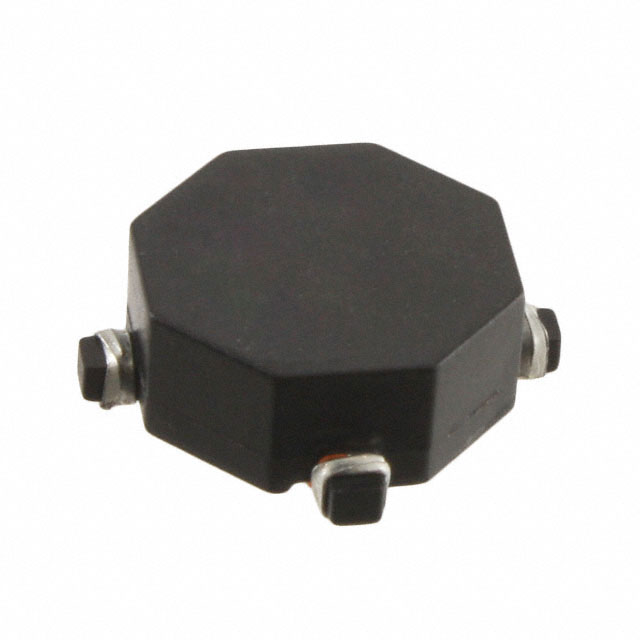

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX100-1P-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX100-1P-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX100-1P-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 99.01UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1100 pcs | 3300 pcs | |||
|---|---|---|---|---|---|
| $0.881 | $0.852 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX100-1P-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 99.01UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42126 pcs | Data sheet | CTX Series ECONO-PAC, OCTA-PAC/PLUS |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Shielding | Unshielded |
| Series | Econo-Pac™ | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1036-2 CTX100-1P CTX1001PR |
Operating Temperature | -40°C ~ 85°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 396.06µH |
| Inductance - Connected In Parallel | 99.01µH | Height | 0.165" (4.19mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 396.06µH Inductance - Connected in Series 99.01µH Inductance - Connected in Parallel 557 mOhm Max DC Resistance (DCR) - Parallel 540mA Nonstandard | DC Resistance (DCR) - Series | 2.227 Ohm Max |
| DC Resistance (DCR) - Parallel | 557 mOhm Max | Current Rating - Series | 270mA |
| Current Rating - Parallel | 540mA |
